OZ Lifting to Showcase Non-Permanent Davit at Chicago Build

OZ Lifting Products LLC will exhibit its new PCX System, a non-penetrating parapet clamp davit solution for rooftop material handling, at Chicago Build, which takes place October 28-29 at McCormick Place. See OZ Lifting at Booth 1342.



OZ LOGO 768×265

Image Courtesy of: OZ Lifting Products

The PCX is engineered as a complete solution-based system for solid concrete parapet rooftop applications; it is a removable, non-penetrating parapet clamp davit, designed specifically for material handling on solid concrete parapet walls. It will be of primary interest to Chicago Build attendees, which include contractors, architects, realtors, civil engineers, developers, house builders, and construction professionals, largely from the U.S. Midwest.

The PCX Clamp secures to the top of a solid concrete parapet without drilling or permanent installation, creating a reliable anchor point for the PCX 250 davit crane, for lifting operations up to 250 lbs. The system provides fast setup, easy removal, and can be reused across multiple lift locations, allowing crews to perform rooftop lifts safely and efficiently.

The U.S. Patent-pending PCX Clamp is essentially a removable, two-piece davit base. During installation, the clamp halves are positioned around the parapet and secured by tightening the main threaded rod, which applies clamping force to the wall and creates a stable temporary anchor point for material handling lifts. The PCX 250 davit installs into the PCX Clamp in seconds with the OZ Quick Connect System, allowing the complete lifting system to be deployed, removed, and relocated between lift points quickly.

Steve Napieralski, president at OZ Lifting, said: “We’re seeing growing demand for lifting solutions that provide both flexibility and practicality without requiring permanent modifications to a building. This is a complete engineered system designed specifically for solid concrete parapets, giving contractors and building owners a temporary lifting solution that can be deployed quickly and removed once the work is complete. Compared with permanently installed anchorage systems, it offers faster deployment, while remaining suitable for use across multiple lift locations.”

He added: “Not every project calls for a permanent installation. Many building owners simply want a reliable lifting solution that supports maintenance or construction activities without altering the structure itself. Because the system is removable, it provides an efficient option for contractors working across multiple sites, while giving owners the flexibility they need without committing to permanent lifting installations.”

Construction and infrastructure projects

The new PCX System has broad application wherever safe, temporary lifting is required from solid concrete parapets. That makes it well suited to commercial buildings, hospitals, universities, hotels, data centers, government buildings and airports, as well as other construction and infrastructure projects. It is adjustable to fit solid concrete parapet walls from 6 to 18 inches. Finished with an exterior-grade industrial powder coat and manufactured from durable steel, the system is built to withstand demanding working environments. The extended-reach davit provides a maximum 62-inch reach and 87-inch hook height, while maintaining its maximum weight capacity in all positions. Four boom height adjustments, together with 360-degree rotation or a single-position locking collar for controlled lifts, give operators the flexibility to adapt to a variety of lifting scenarios. The system also features a manual CE winch (with an integrated Weston brake), which is removeable to accommodate a drill drive adapter. The product is made in the USA. Chicago Build attendees will also be able to see the Tele-Pro davit crane, leveraging the benefits of the company’s other davits, while telescoping the boom in and out under load. The Electric Series chain hoist, Builder’s Hoist, manual hoists, trolleys, and beam clamps complete the line-up.

 See OZ Lifting at Chicago Build; Booth 1342. The new PCX System will also be exhibited at IFMA World Workplace, which takes place November 18-20 at Anaheim Convention Center in Anaheim, California.
Inquiries are now being welcomed ahead of the product’s official launch, with deliveries commencing shortly afterwards.

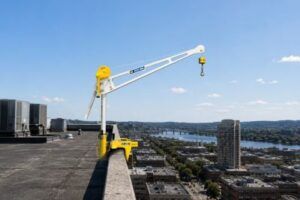

OZPCXS RooftopApplication
Image Courtesy of: OZ Lifting Products
OZ Lifting’s new PCX System is designed specifically for solid concrete parapets, providing a temporary, non-permanent solution that can be deployed quickly without altering the structure.

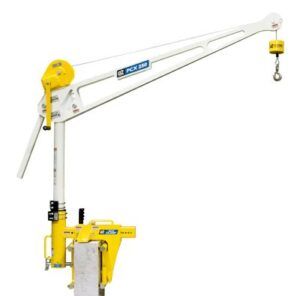

OZPCXS FullSystem
Image Courtesy of: OZ Lifting Products
The PCX is engineered as a complete solution-based system for solid concrete parapet rooftop applications.
